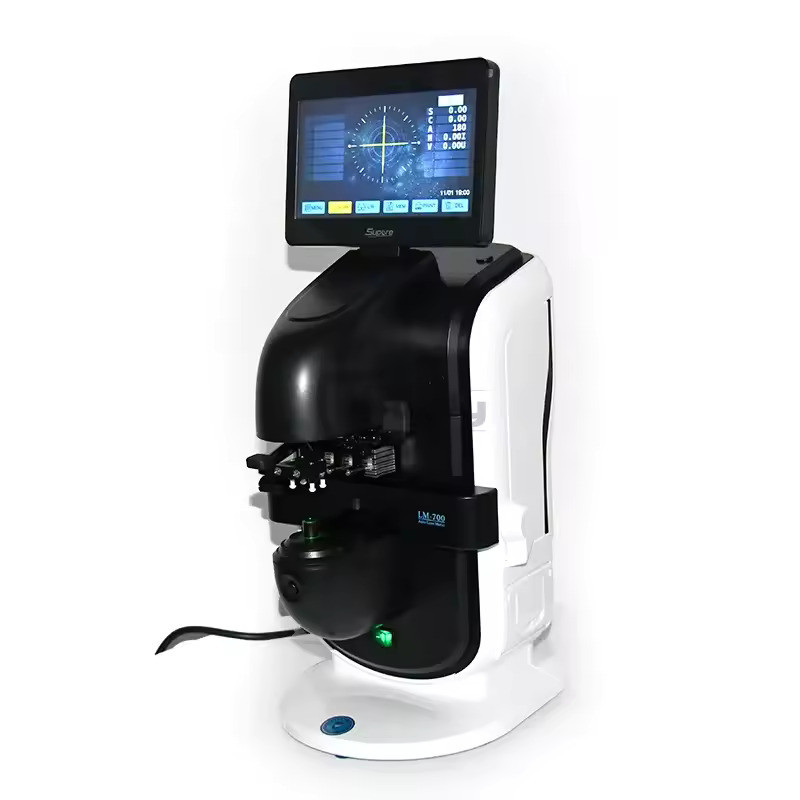

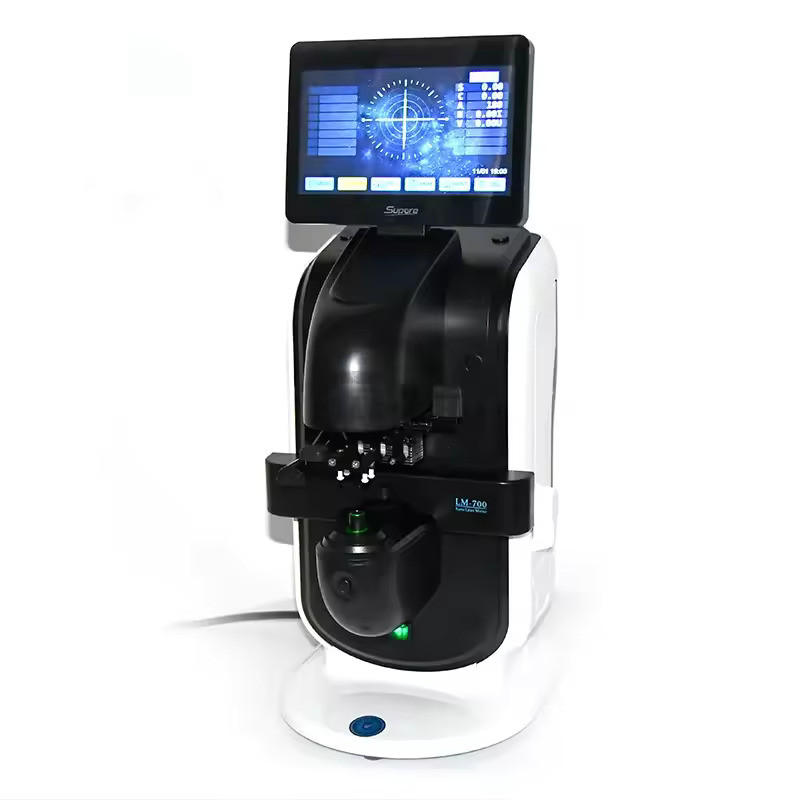

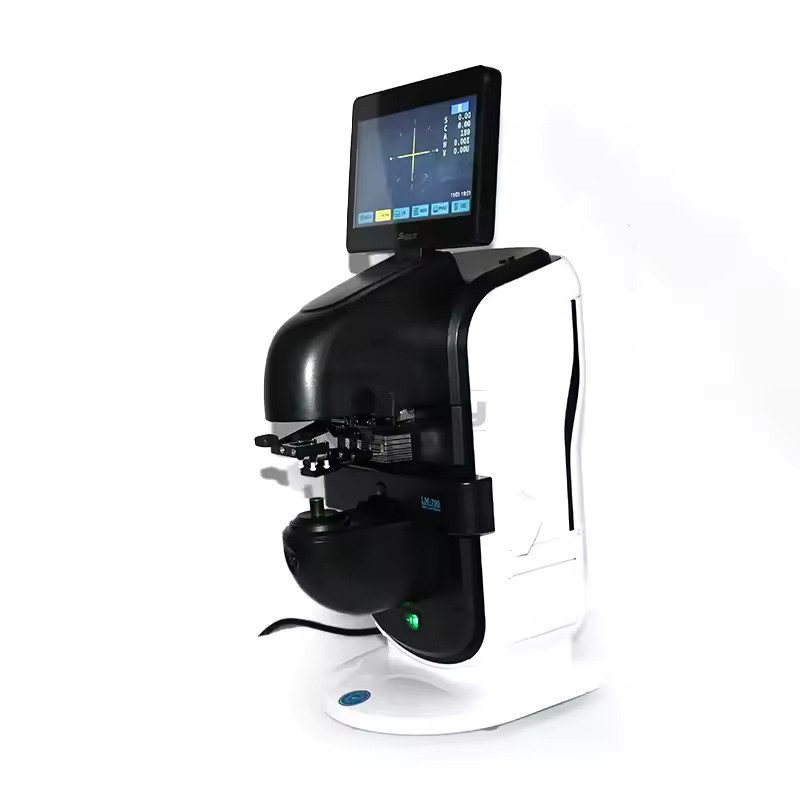

Advanced Digital Lensmeter with Auto Features
Brand Generic
Product Highlights
- Measures single focal, bifocal, and progressive lenses: Delivers speed and precision.
- Employs Hartmann principle: Ensures highly accurate measurements.
- Convenient QR code printing: Eliminates the need for paper.
- Integrated printer: Streamlines data output and record-keeping.
- High-resolution color screen: Ensures clear readings.
- User-friendly interface: Simplifies progressive lens measurements.
Share
Optimize your optical practice with this cutting-edge digital lensmeter. The lensmeter delivers fast, accurate readings for single focal, bifocal, and progressive lenses, enhancing efficiency in your workflow. Equipped with an integrated printer and QR code generation, it provides flexible output options for data transfer and record-keeping.
Product Specifications:
|
Lens
Types |
Single
focal, bifocal, progressive |
|
Measurement
Principle |
Hartmann
principle |
|
Data
Output |
QR
code, integrated printer |
|
Display |
High-resolution
color screen |
|
User
Interface |
Progressive
lens measurement mode |
|
Sphere
Range |
0
to ±25D (0.01D/0.06D/0.12D/0.25D steps) |
|
Cylinder
Range |
0
to ±10D (0.01D/0.06D/0.12D/0.25D steps) |
|
Axis
Range |
0°
to 180° (1° step) |
|
ADD
Range |
0
to 10D |
|
Prism
Basal Angle |
0°
- 360° |
|
Cylinder
Mode |
+,
+/-, – |
|
Prism
Range (Horizontal/Vertical) |
15
/ 20 |
|
Lens
Diameter |
7
~ 110mm |
|
Lens
Thickness |
<=20mm |
|
UV
Transmissivity Measurement |
Yes |
|
PD
Range |
30
~ 100mm |
|
PH
Range |
4
~ 55mm |
|
Power
Source |
AC100
(±10%) ~240 (±10%) V, (50/60Hz), 40VA |
|
Power
Adapter |
AC110V
~ 20V |
|
Weight |
5kg |
|
Dimensions |
203
× 240 × 480mm (W × D × H) |
